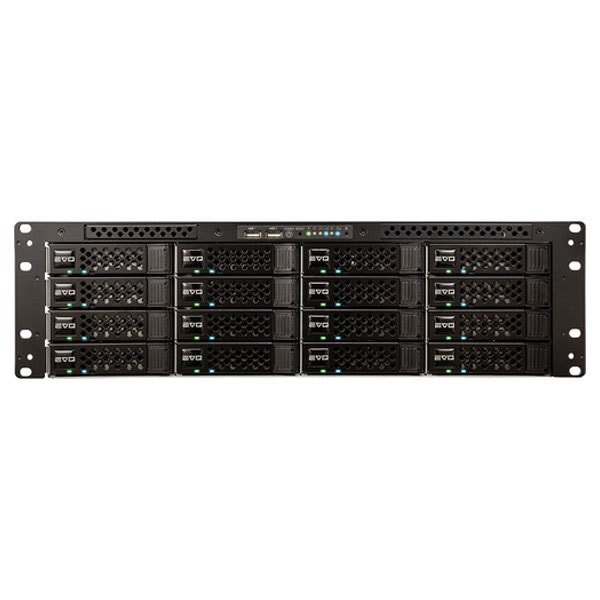

16 Bay EVO
Base Physical and Electrical
64-bit, multi-CPU, multi-core, 3U storage server
Power Requirement: 100-240VAC 50-60Hz (auto switching)
Power Supply: 1300W Redundant (3 650W modules)
Operational environment: 40 to 72°F (5 to 22°C)
Thermal: ~1297 BTU/hr
Physical dimensions: Height 5.25" x Width 19" x Length 28.5" chassis, 32" w/ cables
SPL: Base chassis with 16 disk drives, at idle, <60db SPL @ 1m, A-weighted
EVO connects to standard 120v mains power. Each base unit has 3 power supplies and therefore 3 mains power cables using standard NEMA 5-15 plugs. The base unit will draw about 10A at 120v.
Rack Requirements
EIA-310 rack, 4-post with front and rear rails
Included Mounting rails
0.625" pitch, round hole (square hole compatible)
Inner-rail to inner-rail depth: 26.125" to 35" (66cm – 89cm)
Rear-rail mount can be flipped to fit a minimum depth of 17", with 9" of rail overhang.
Connectivity and Expansion
Included ShareBrowser Desktop Client Licenses: Unlimited
Included EVO-only SANmp Sharing Licenses: Unlimited
Included EVO-only iSCSI Initiator Licenses: Unlimited
Included GbE Ports: 4
Maximum GbE Ports: 28
Maximum 10GbE Ports: 12
Maximum Fibre Channel Ports: 12
Maximum SATA/SAS/SSD Disks per Chassis: 16
Maximum Disks per System: 80
Supported RAID Levels
RAID Levels: 0, 1, 4, 5, 6, and 10
Available Drives
256GB, 512GB, 1TB SSD
2TB, 3TB, 4TB, 6TB Enterprise-class RAID-edition 6Gbps SATA drives
Rack Requirements
EIA-310 rack, 4-post with front and rear rails
Included Mounting rails
0.625" pitch, round hole (square hole compatible)
Inner-rail to inner-rail depth: 26.125" to 35" (66cm – 89cm)
Rear-rail mount can be flipped to fit a minimum depth of 17", with 9" of rail overhang.

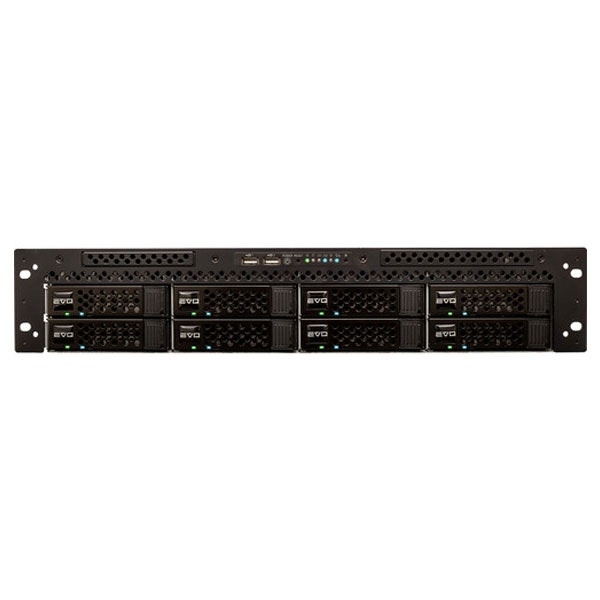

8 Bay EVO
Base Physical and Electrical
64-bit, multi-CPU, multi-core, 2U storage server
Power Requirement: 100-240VAC 47-63Hz (auto switching)
Power Supply: 600W, or 650W Redundant (2 650W modules)
Maximum Load: 9-4A
Operational environment: 40 to 72°F (5 to 22°C)
Thermal: ~785 BTU/hr
Physical dimensions: Height 3.625" x Width 19" x Length 28.5" chassis, 32" w/ cables
Shipping weight: 62 lbs
Height Requirements: 2U
Rack Requirements
EIA-310 rack, 4-post with front and rear rails
Included Mounting rails
0.625" pitch, round hole (square hole compatible)
Inner-rail to inner-rail depth: 26.125" to 35" (66cm – 89cm)
Rear-rail mount can be flipped to fit a minimum depth of 17", with 9" of rail overhang.
Connectivity and Expansion
Included ShareBrowser Desktop Client Licenses: Unlimited
Included EVO-only SANmp Sharing Licenses: Unlimited
Included EVO-only iSCSI Initiator Licenses: Unlimited
Included GbE Ports: 2
Maximum GbE Ports: 10
Maximum 10GbE Ports: 4
Maximum Fibre Channel Ports: 4
Maximum SATA/SAS/SSD Disks per Chassis: 8
Maximum Disks per System: 24
Supported RAID Levels
RAID Levels: 0, 1, 4, 5, 6, and 10
Available Drives
256GB, 512GB, 1TB SSD
2TB, 3TB, 4TB, 6TB Enterprise-class RAID-edition 6Gbps SATA drives

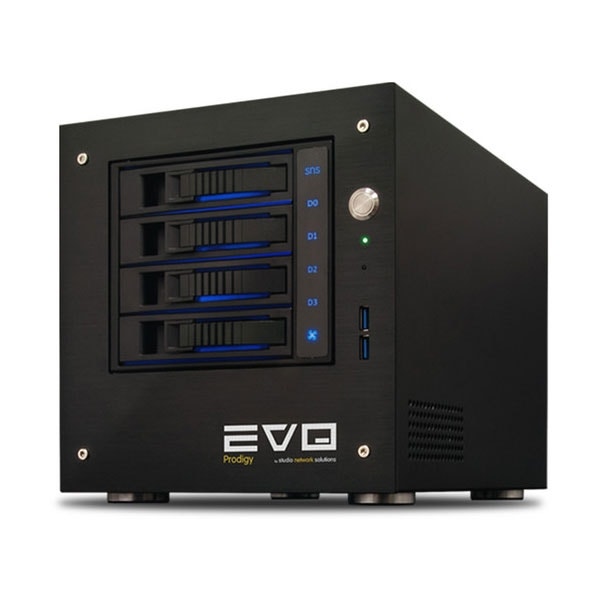

EVO Prodigy Desktop
Expansion Physical and Electrical
Power Requirement: 115-230VAC 50/60 Hz (auto switching)
Power Supply: 300W
Maximum Load: 1.36 to 2.72 A
Operational environment: 40 to 72°F / 4 to 22°C
Physical dimensions: 9.3 x 8.8 x 13.0"
Shipping weight: 25.35 lbs
Connectivity and Expansion
Included GbE Ports: 2
Maximum GbE Ports: 8
Maximum 10GbE Ports: 2
Maximum Fibre Channel Ports: 4
Supported RAID Levels
RAID Levels: 0, 1, 4, 5, 6, and 10
Available Drives
256GB, 512GB, 1TB SSD
2TB, 3TB, 4TB, 6TB Enterprise-class RAID-edition 6Gbps SATA drives
